Last month I walked up to a Haas VF-2 that had been cutting aluminum brackets for three years without a single spindle service log entry. The operator complained about a faint squeal during rapid moves and a worsening finish on the bore walls. I pulled the logbook—empty. That’s when I knew we were flying blind. Over the next two days I walked through a systematic spindle service log checklist that turned up a failing front bearing and a 0.0008″ runout that had been creeping in for weeks. Here’s the ladder I climbed, from the first visible symptom to the hard measurement evidence.

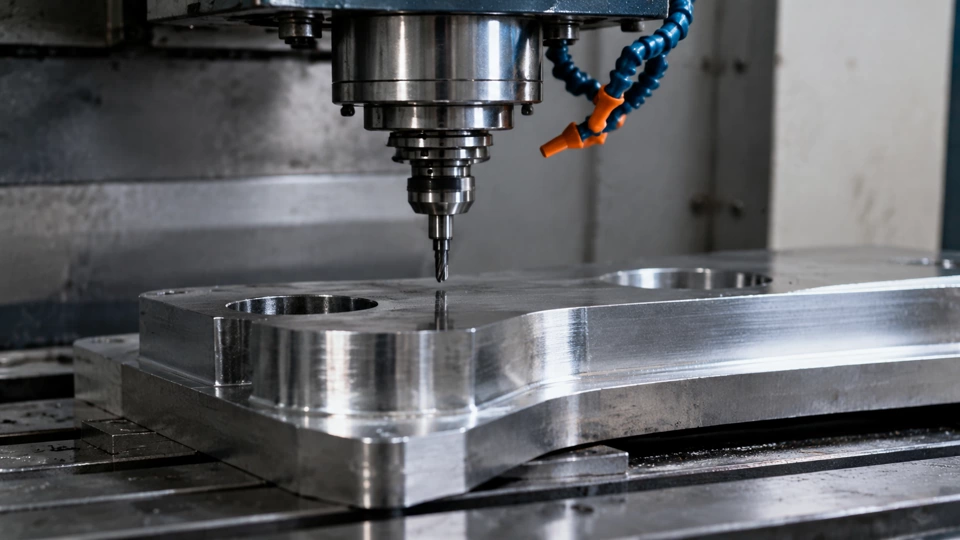

Symptom Checkpoint 1: Surface Finish Deterioration
Chatter marks and waviness on machined surfaces
The first thing most operators notice is a change in surface finish. On a recent job cutting 6061 aluminum, the part showed a repeating pattern of light and dark bands—classic chatter. I checked the insert condition first; they were fine. Then I looked at the tool holder and collet; no visible damage. That left the spindle. I ran a quick test cut on a scrap piece and the pattern repeated. At this point I logged the symptom in the spindle service log checklist: “chatter marks on bore, frequency ~120 Hz.” That number came from counting the bands per inch and multiplying by the feed rate. It pointed toward a bearing issue, not a tool problem.
Surface finish problems often get blamed on tool wear or coolant concentration, but when those checks come back clean, the spindle is the next suspect. I’ve seen shops replace inserts three times before someone finally runs a runout inspection. The key is to document the exact pattern—chatter, waviness, or random scratches—and note the cutting parameters. That data becomes the first rung on the symptom ladder. Without a spindle service log checklist, that information gets lost in the noise of daily production.
Symptom Checkpoint 2: Audible and Thermal Signals
Squealing, grinding, or elevated housing temperature
Two days after the surface finish complaint, the operator reported a high-pitched squeal during spindle acceleration. I grabbed an infrared thermometer and measured the housing temperature after a 30-minute run at 8000 RPM. It read 115°F—about 20°F above the baseline I had recorded six months earlier. That temperature rise, combined with the squeal, told me the bearing preload was likely too tight or the grease was breaking down. I logged both readings in the spindle service log checklist: “housing temp 115°F, audible squeal at 6k-8k RPM.”
Thermal growth is a silent killer in spindles. When bearings start to fail, friction increases, heat builds, and the spindle alignment can shift. In Ohio’s humid summers, I’ve seen spindles that ran fine in winter start throwing thermal alarms in July. That’s why I always include a temperature checkpoint in my spindle service log checklist. If the housing is more than 15°F above the baseline, I schedule a deeper inspection. The squeal alone might be dismissed as a belt noise, but combined with a temperature spike, it’s a clear escalation cue.
Symptom Checkpoint 3: Vibration and Runout Measurements
Quantifying the problem with a dial indicator and vibrometer
Once I had surface finish and thermal evidence, I moved to measurement. I set up a dial indicator on the spindle taper and rotated the spindle by hand. The needle jumped 0.0008″—double the machine’s specification of 0.0004″. Then I used a handheld vibrometer to check the housing at three speeds: 3000, 6000, and 9000 RPM. The readings were 0.12, 0.28, and 0.45 in/s respectively. The ANSI standard for this class of machine is 0.15 in/s at the highest speed. We were three times over. I recorded every value in the spindle service log checklist: “runout 0.0008″, vibration 0.45 in/s at 9k RPM.”
These numbers are the hard evidence that forces a decision. Without them, a manager might say “run it one more shift.” But with a documented final measurement showing 0.0008″ and vibration spiking at high speed, the case for immediate spindle service is clear. I’ve learned to always take measurements at multiple speeds because some bearing defects only show up at certain RPMs. The spindle service log checklist should have rows for low, medium, and high speed vibration, plus a column for the baseline values. That way you can see the trend, not just a snapshot.
Symptom Checkpoint 4: Bearing Condition Assessment
Disassembly and visual inspection of the bearing set
With the measurement evidence in hand, I pulled the spindle cartridge. The front bearing showed brinelling on the outer race—small dents from vibration during a crash six months earlier that had never been logged. The rear bearing had grease that looked like dried mud. I used a borescope to check the inner race and found a hairline crack. That crack was the source of the 0.0008″ runout. I photographed everything and added the findings to the spindle service log checklist: “front bearing brinelled, rear bearing grease degraded, inner race crack.”
This step is where the spindle service log checklist pays off. If the earlier symptoms had been logged, we might have caught the brinelling before it cracked the race. Instead, we lost a week of production. I always tell maintenance teams: the log is not a paperwork exercise—it’s a diagnostic tool. When you see a pattern of increasing runout or temperature, you can schedule bearing replacement during a planned outage. That’s the difference between a $2000 bearing job and a $15,000 spindle rebuild.
Symptom Checkpoint 5: Corrective Action and Verification
Replacing bearings and re-establishing preload
After documenting the failed bearings, I replaced the front and rear set with new angular contact bearings. I followed the manufacturer’s procedure for preload setup: a 0.0002″ shim under the front bearing nut, then a torque sequence that pulled the nut to 120 ft-lb. After reassembly, I ran the spindle at 3000 RPM for 15 minutes, then checked the runout again. It was 0.0002″—well within spec. The vibration at 9000 RPM dropped to 0.10 in/s. I logged the final measurements in the spindle service log checklist and noted the new preload setup.
Verification is the last rung on the ladder. Too many shops replace bearings and skip the Final Verification, only to find the problem persists. I always do a full alignment check check after any bearing work, using a test bar and a dial indicator at the taper and at a point 6 inches from the nose. If the alignment is off by more than 0.0005″, I adjust the cartridge shims. That attention to detail is what keeps a spindle running for years. The spindle service log checklist should have a sign-off line for the technician and a space for the final runout value.
This article is informational and reflects my field experience as Derek Holloway, CNC Maintenance Advisor. Every spindle tells a story—you just have to log the clues.
