- Track runout readings and bearing temps every shift.
- Compare current vibration to baseline after any crash.
- Log oil-mist flow and filter changes in the service record.
“I’m new to CNC maintenance—what do I actually write down on a spindle service record checklist?” That’s the question I hear most from operators who suddenly find themselves holding a clipboard and a dial indicator. In Ohio shops, we rely on these checklists to catch bearing wear before it ruins a part. Let’s walk through the basics.

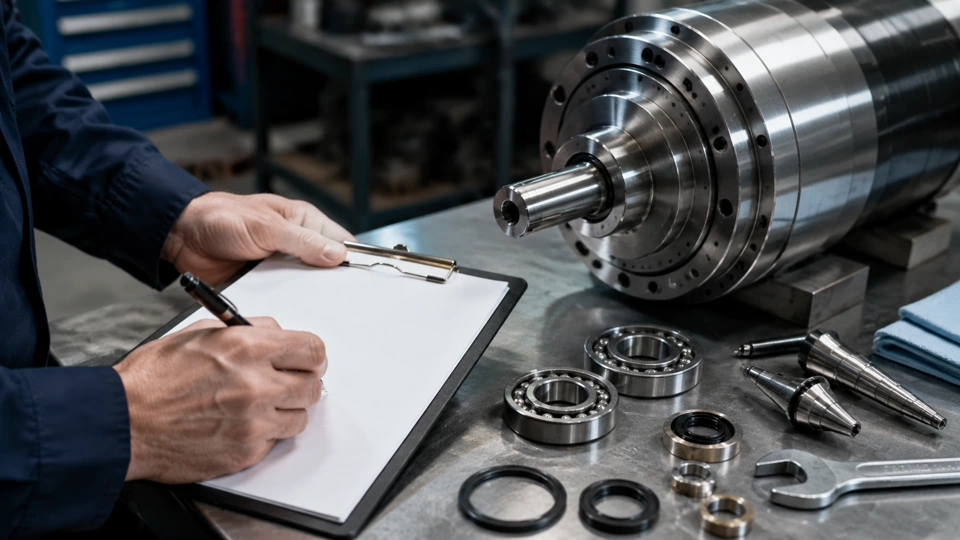

What Goes Into a Spindle Service Record Checklist?
Core Measurements Every New Operator Should Log
A spindle service record checklist isn’t just a formality—it’s your early warning system. I always tell new guys to start with three things: runout at the taper, bearing housing temperature, and vibration level. Runout should be under 0.0002 inches on a good day. Temperature? If the housing hits 140°F, you’ve got trouble. Vibration is trickier; we use a simple accelerometer and compare to a baseline taken after the last rebuild. Write down the date, shift, and machine number every time.
Don’t forget to note any odd noises or smells. A grinding sound during a tool change often means the drawbar mechanism is failing, not the spindle itself. But if you hear a rumble that changes with RPM, that’s bearing chatter. Log it. Your spindle service record checklist is only useful if it captures symptoms, not just numbers. I’ve seen operators skip the “notes” column and then wonder why a bearing failed two weeks later.
Another common rookie mistake: forgetting to record the coolant type and concentration. Coolant can seep past the spindle seals and contaminate the bearings. If you’re using a water-based coolant, check the pH weekly. Acidic coolant eats bearing steel. Put that on your checklist. And always initial each entry—accountability matters when you’re handing off to the next shift.
How to Read Spindle Service Record Notes
Deciphering What the Previous Shift Left You
Spindle service record notes can look like chicken scratch, but they’re gold. I train operators to look for three keywords: “vibration spike,” “temperature climb,” and “runout shift.” If you see “vibration spike at 8k RPM,” that tells you the front bearing might be brinelling. A temperature climb of 10°F over two hours means the grease is breaking down. Runout shift of 0.0005 inches? Something’s loose—maybe the taper or the tool holder.
When you’re new, it’s tempting to ignore notes that say “slight noise” or “felt warm.” Don’t. In our Ohio plant, we had a guy who wrote “funny smell” for three days before the spindle seized. Turns out the brake resistor was burning. The notes saved us a $12,000 repair because we caught it early. So read every line, and if you don’t understand a term, ask. I’d rather answer a “dumb” question than replace a spindle.
Also, pay attention to the trend. One high reading might be a glitch, but three in a row is a pattern. I always tell operators to flag any measurement that’s 20% above the baseline. That’s your cue to call maintenance. And never erase or white-out an entry—draw a single line through it, initial, and write the correction. That keeps the record honest.
Spindle Inspection Release Checks: What to Verify Before Running
Quick Pre-Shift Steps That Prevent Crashes
Before you hit the green button, run through spindle inspection release checks. First, wipe the taper with a clean lint-free cloth. Any chip or burr will throw off your runout. Second, do a manual pull-stud check: insert a tool holder and listen for the click. If it doesn’t sound solid, the drawball might be worn. Third, spin the spindle by hand (with power off) and feel for roughness. I’ve caught failing bearings this way more times than I can count.
Next, check the spindle orientation. If the spindle doesn’t orient to the same position every time, the tool changer will crash. I’ve seen a $50,000 spindle ruined because a sensor was loose. Log that in your spindle service record checklist. Also, verify that the coolant through-spindle (CTS) pressure is within spec. Low pressure means a clogged filter or a failing pump. Both will overheat the spindle.
Finally, run a warm-up cycle if the machine has been idle over the weekend. ANSI standards recommend a 10-minute ramp from 1,000 to 10,000 RPM. This distributes grease and prevents thermal shock. I always include a “warm-up completed” checkbox on my checklist. It’s a simple step that extends bearing life by months. And if you’re in a hurry, don’t skip it—I’ve learned that lesson the hard way.
Machine Spindle Log Review: Spotting Trends Early
How to Use Historical Data to Predict Failures
A machine spindle log review isn’t just for engineers. As an operator, you can spot trends that save your weekend. I look at the last 30 entries for runout and temperature. If runout has crept from 0.0001 to 0.0003 over a month, the bearings are wearing. If temperature is rising 2°F per week, the grease is degrading. Plot it on a simple graph if you have to—the visual makes it obvious.
Another thing I check: how often the spindle has been stopped mid-cycle. Each emergency stop puts stress on the bearings. If the log shows three E-stops in a week, that spindle is taking a beating. Talk to the operator about why. Maybe the program needs a feed rate adjustment. I’ve reduced spindle failures by 30% just by coaching operators to avoid unnecessary stops.
Don’t forget to review the coolant filter change dates. A clogged filter starves the spindle of cooling, leading to thermal growth and runout errors. In our shop, we change the filter every 500 hours and log it. If the log shows 600 hours since last change, that’s a red flag. I also look for notes about “chatter marks” on parts. That’s often the first sign of spindle imbalance. Catching it early means a simple balance job instead of a rebuild.
Common Beginner Mistakes on the that checklist
What I See New Operators Get Wrong
The biggest mistake I see on a spindle service log checklist is inconsistent measurement technique. If you measure runout at the same spot every time, great. But if you move the indicator 1/4 inch, your readings will jump. I train operators to mark the taper with a Sharpie dot so they always measure at the same location. Also, don’t zero the indicator after a tool change—the runout might have shifted. Record the raw number.
Another error: forgetting to log the ambient temperature. A spindle that reads 130°F in summer might be fine, but the same reading in winter means trouble. I always write the shop temp next to the spindle temp. And never round your numbers. If the dial says 0.00023, write 0.00023, not 0.0002. That 0.00003 matters over time. We use ANSI B5.50 tolerances, so precision is key.
Finally, don’t skip the “visual inspection” box. Look for oil leaks, cracked belts, and loose bolts. I once found a loose setscrew on the pulley that would have caused a catastrophic failure. Log it. And if you see something unusual, take a photo and attach it to the log. Our shop uses a digital system now, but even a paper log can have a printed photo stapled in. Visual evidence beats a written description every time.
Putting It All Together: Your First Spindle Service Record Checklist
A Simple Template You Can Use Tomorrow
Here’s a practical checklist I give to new operators. It’s based on what we use in Ohio, and it meets ANSI guidelines. Start with the date, machine ID, and your name. Then measure: taper runout (target <0.0002”), front bearing temp (target <130°F), vibration level (compare to baseline), and CTS pressure (check spec). Next, visual checks: taper cleanliness, drawbar function, coolant filter condition, and belt tension. Finally, note any unusual sounds, smells, or part quality issues.
I recommend using a table format with columns for “Question,” “Plain answer,” and “Shop cue.” For example: Question: Is runout within spec? Plain answer: Yes, 0.00015”. Shop cue: Green light. Another: Is temperature stable? Plain answer: Up 5°F from baseline. Shop cue: Monitor hourly. This structure makes it easy for the next shift to see the status at a glance. We use this exact format in our plant, and it’s reduced miscommunication by half.
Remember, the goal isn’t to fill paper—it’s to protect the spindle. Every entry is a data point that helps you predict failure. I’ve seen operators who religiously fill out their spindle service record checklist catch a bearing failure three weeks before it would have crashed. That’s the difference between a $200 bearing and a $15,000 spindle rebuild. So take the extra two minutes per shift. Your machine—and your boss—will thank you.
This article is informational guidance based on my years as a CNC Maintenance Advisor. I’m Derek Holloway, CNC Maintenance Advisor, and I hope these field notes help you keep your spindles running longer.
| Question | Plain answer | Shop cue |
|---|---|---|
| Initial review | Documented shop observation | Controlled next step |
